A particular feature ...

of this compact sensor is the sophisticated electronics and the guaranteed outstanding measuring accuracy. The high-quality capacitive measuring element is reliably protected against air pollutants by a membrane filter. The combined sensor is designed for high-quality use in meteorology and industry. The user can independently calibrate the sensor using the calibration and adjustment software.

capacitive humidity measuring element
special resistance to air pollutants
high long term stability
signal output humidity: 0...1 V (linear 0...100 %)
temperature measuring element: Pt100 1/3 DIN
signal output temperature: 4-wire-circuit Pt100

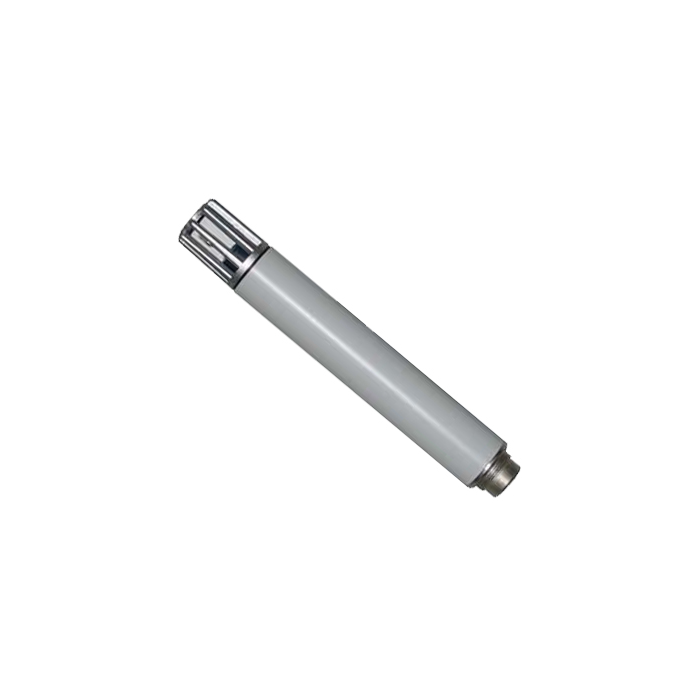

	Humidity-temperature sensor E8092
Measuring range	0...100 % r. h. • -40...+85 °C
Accuracy	± 1.5 % r. h. at 10...90 % r. h. • at 23 °C < 10 % r. h. > 90 % r. h. ± 2 % r. h. temperature influence TK (does not equal 23 °C): < 0.02 % r. h. /K
Long-term stability	typical under normal conditions < 1 % r. h./ year
Output	0...1 V DC = 0...100 % r. h. • min. load resistance ≥ 2.0 kΩ • Pt100 (4-wire circuit)
Supply voltage	5...30 V DC
Dimensions	H 122 mm • Ø 20 mm
Housing	aluminium • lacquered • grey • IP 65 • sensor filter area IP 30 • incl. connector (cable socket) IP 67
Weight	approx. 0.3 kg
Standards	CE/ EMC: EN 61326-2-3
Accessories	E00.08141.600 000 (E8141.6) Sensor shelter for sensor (E8092.3) • Further accessories on request e.g. humidity standard
