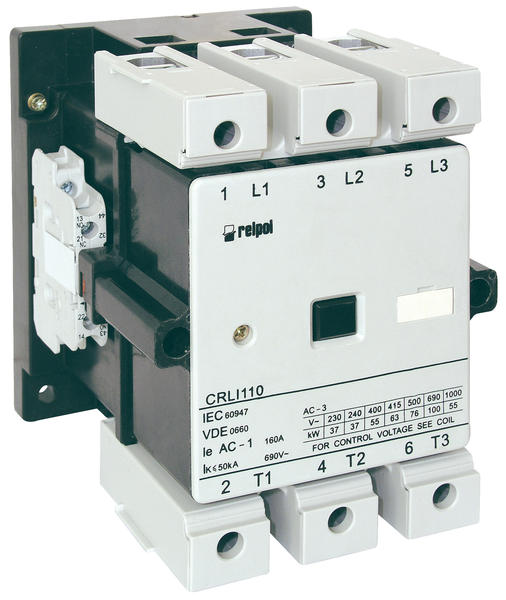

Stycznik CRLI
Contactors over 100 A: CRLI110, CRLI140, CRLI170, CRLI205, CRLI250, CRLI300, CRLI400. AC control






Coil AC

Coil voltage



  from the 110V AC to 400 V AC

Rated insulation voltage V



1000 V

Rated operating current (380 V)

AC3

from the  110 to 400 A

Rated outputs of three phase motors at 50 Hz [kW]

AC3 400/380 V

from the  4 to 45

Range of supply coil voltage



( 0,8 - 1,1 ) Us

Conventional thermal current

AC1

from the 6 to 400


three-pole and four-pole

Products

CRLI110-30-22-A110

Contactor, 3-poles, Ie:110 A/380V (AC3) (55 kW), Coil: 110VAC, Auxiliary contacts:2N/O+2N/C

CRLI110-30-22-A230

Contactor, 3-poles, Ie:110 A/380V (AC3) (55 kW), Coil: 230VAC, Auxiliary contacts:2N/O+2N/C

CRLI110-30-22-A400

Contactor, 3-poles, Ie:110 A/380V (AC3) (55 kW), Coil: 400VAC, Auxiliary contacts:2N/O+2N/C

CRLI140-30-22-A110

Contactor, 3-poles, Ie:140 A/380V (AC3) (75 kW), Coil: 110VAC, Auxiliary contacts:2N/O+2N/C

CRLI140-30-22-A230

Contactor, 3-poles, Ie:140 A/380V (AC3) (75 kW), Coil: 230VAC, Auxiliary contacts:2N/O+2N/C

CRLI140-30-22-A400

Contactor, 3-poles, Ie:140 A/380V (AC3) (75 kW), Coil: 400VAC, Auxiliary contacts:2N/O+2N/C

CRLI170-30-22-A230

Contactor, 3-poles, Ie:170 A/380V (AC3) (90 kW), Coil: 230VAC, Auxiliary contacts:2N/O+2N/C

CRLI170-30-22-A400

Contactor, 3-poles, Ie:170 A/380V (AC3) (90 kW), Coil: 400VAC, Auxiliary contacts:2N/O+2N/C

CRLI205-30-22-A110

Contactor, 3-poles, Ie:205 A/380V (AC3) (110 kW), Coil: 110VAC, Auxiliary contacts:2N/O+2N/C

CRLI205-30-22-A230

Contactor, 3-poles, Ie:205 A/380V (AC3) (110 kW), Coil: 230VAC, Auxiliary contacts:2N/O+2N/C

CRLI205-30-22-A400

Contactor, 3-poles, Ie:205 A/380V (AC3) (110 kW), Coil: 400VAC, Auxiliary contacts:2N/O+2N/C

CRLI250-30-22-A110

Contactor, 3-poles, Ie:250 A/380V (AC3) (200 kW), Coil: 110VAC, Auxiliary contacts:2N/O+2N/C

CRLI250-30-22-A230

Contactor, 3-poles, Ie:250 A/380V (AC3) (200 kW), Coil: 230VAC, Auxiliary contacts:2N/O+2N/C

CRLI250-30-22-A400

Contactor, 3-poles, Ie:250 A/380V (AC3) (200 kW), Coil: 400VAC, Auxiliary contacts:2N/O+2N/C

CRLI300-30-22-A110

Contactor, 3-poles, Ie:300 A/380V (AC3) (200 kW), Coil: 110VAC, Auxiliary contacts:2N/O+2N/C

CRLI300-30-22-A230

Contactor, 3-poles, Ie:300 A/380V (AC3) (200 kW), Coil: 230VAC, Auxiliary contacts:2N/O+2N/C

CRLI400-30-22-A110

Contactor, 3-poles, Ie:400 A/380V (AC3) (200 kW), Coil: 110VAC, Auxiliary contacts:2N/O+2N/C

CRLI400-30-22-A230

Contactor, 3-poles, Ie:400 A/380V (AC3) (200 kW), Coil: 230VAC, Auxiliary contacts:2N/O+2N/C

CRLI400-30-22-A400

Contactor, 3-poles, Ie:400 A/380V (AC3) (200 kW), Coil: 400VAC, Auxiliary contacts:2N/O+2N/C

Accessories

CRI-390

Current links - to connection RSTL4 with contactors CRLI250, CRLI300, CRLI400.

CRI-382

Current links - to connection RSTL3, RSTL4 with contactors CRLI205, CRLI250

CRI-370

Current links - to connection RSTL2, RSTL3 with contactors CRLI140, CRLI170.

CRI2A-11

Auxiliary contacts 1 N/O+1 N/Z for contactors CRNI45...85 and CRLI110...400

CRI-S51

Styki główne do CRLI400

CRI-S50

Styki główne do CRLI300

CRI-S49

Styki główne do CRLI250

CRI-S48

Styki główne do CRLI205

CRI-S47

Styki główne do CRLI170

CRI-S46

Styki główne do CRLI140

CRI-S45

Styki główne do CRLI110

CRI-C28 D220

Cewka DC do CRLI400, DC ECONOMY CIRCUIT DC 220V

CRI-C28 D024

Cewka DC do CRLI400, DC ECONOMY CIRCUIT DC 24V

CRI-C27 D220

Cewka DC do CRLI250..CRLI300, DC ECONOMY CIRCUIT DC 220V

CRI-C27 D024

Cewka DC do CRLI250..CRLI300, DC ECONOMY CIRCUIT DC 24V

CRI-C26 D220

Cewka DC do CRLI170..CRLI205, DC ECONOMY CIRCUIT DC 220V

CRI-C26 D024

Cewka DC do CRLI170..CRLI205, DC ECONOMY CIRCUIT DC 24V

CRI-C25 D220

Cewka DC do CRLI110..CRLI140, DC ECONOMY CIRCUIT DC 220V

CRI-C25 D024

Cewka DC do CRLI110..CRLI140, DC ECONOMY CIRCUIT DC 24V

CRI-C18 A400

Cewka AC do CRLI400,AC 400/380V 50HZ, 480/460V 60HZ

CRI-C18 A230

Cewka AC do CRLI400, AC 230/220V 50HZ, 276/264V 60HZ

CRI-C18 A110

Cewka AC do CRLI400, AC 110V 50HZ/AC 132V 60HZ

CRI-C18 A024

Cewka AC do CRLI400, 24 V AC 50 HZ/29 V AC 60 HZ

CRI-C17 A400

Cewka AC do CRLI250..CRLI300,AC 400/380V 50HZ, 480/460V 60HZ

CRI-C17 A230

Cewka AC do CRLI250..CRLI300, AC 230/220V 50HZ, 276/264V 60HZ

CRI-C17 A110

Cewka AC do CRLI250..CRLI300, AC 110V 50HZ/AC 132V 60HZ

CRI-C17 A024

Cewka AC do CRLI250..CRLI300, 24 V AC 50 HZ/29 V AC 60 HZ

CRI-C16 A400

Cewka AC do CRLI170..CRLI205, AC 400/380V 50HZ, 480/460V 60HZ

CRI-C16 A230

Cewka AC do CRLI170..CRLI205,AC 230/220V 50HZ, 276/264V 60HZ

CRI-C16 A110

Cewka AC do CRLI170..CRLI205, AC 110V 50HZ/AC 132V 60HZ

CRI-C16 A024

Cewka AC do CRLI170..CRLI205, AC 24V 50HZ/29V 60HZ

CRI-C15 A230

Cewka AC do CRLI110..CRLI140, AC 230/220V 50HZ, 276/264V 60HZ

CRI-C15 A400

Cewka AC do CRLI110..CRLI140, AC 400/380V 50HZ, 480/460V 60HZ

CRI-C15 A110

Cewka AC do CRLI110..CRLI140, AC 110V 50HZ/AC 132V 60HZ

CRI-C15 A024

Cewka AC do CRLI110..CRLI140, AC 24V 50HZ/AC 29V 60HZ

CRI-430

Mechanical latches for contactors CRLI400
