多功能三相电压监控继电器（工业型） 订购编号:MR-GU3M2P-TR2
点击这里发送询价请详细填写一下内容，包括产品原产国、品牌完整名称以及您所能得到的所有信息，这将有助于我们准确迅速的报价。非常感谢！

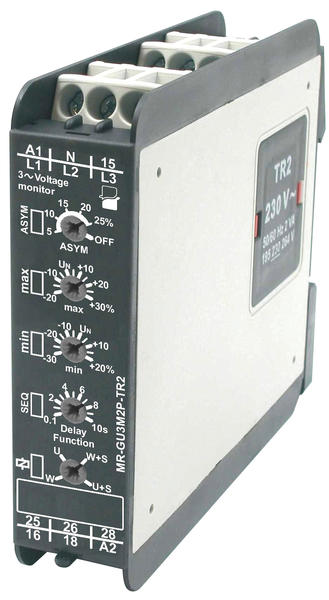

Monitoring relay MR-GU3M2P-TR2
Voltage monitoring in 3-phase mains • Multifunctions monitoring relays
Voltage monitoring in 3-phase mains • Multifunctions monitoring relays
• Monitoring of phase sequence, phase failure and asymmetry
• Timing adjustment for tripping delay
• Connection of neutral wire optional, detection of loss of neutral wire
• Relay supply via the supply transformer of TR2 type
|
Meassuring circuit data |
|
|
Functions |
UNDER, UNDER+SEQ, WIN, WIN+SEQ |
|
monitoring of phase sequence, phase failure and asymmetry |
|
|
timing adjustment for tripping delay |
|
|
Time intervals (timing adjustment) |
tripping delay (0,1...10 s) |
|
LED indicator |
green LED, red LED |
|
Meassuring circuit |
|
|
• terminals |
(N)-L1-L2-L3 |
|
• measuring variable |
AC sinus, 48...63 Hz |
|
• measuring input |
3(N)~ 400/230 V |
|
• overload capacity |
3(N)~ 600/346 V |
|
• swiching threshold Us |
max:- 0,2 < Un < 0,3 min.: -0,3 < Un < 0,2 |
|
• asymmetry |
5...25% |
|
Input circuit |
|
|
Supply voltage U |
12 … 400 V AC; terminals A1-A2 |
|
Rated power consumption |
2,0 VA / 1,5 W |
|
Rated frequency |
as per the specification of TR2 supply transformer |
|
Output circuit |
|
|
Number and type of contacts |
2 C/O - changeover |
|
Rated load AC1 |
5 A / 250 V AC |
|
Max. breaking capacity AC1 |
1 250 VA |
|
Insulation |
|
|
Rated surge voltage |
4 000 V AC |
|
Overvoltage category |
III PN-EN 60664-0 |
|
Insulation pollution degree |
3 PN-EN 60664-1 |
Products
 |
MR-GU32P-TR2
Monitoring relay, Contacts:2C/O, Voltage monitoring in 3-phase mains
 |
MR-GU3M2P-TR2
Monitoring relay, Contacts:2C/O, Voltage monitoring in 3-phase mains - Multifunctions monitori...
