AC/DC voltage monitoring in 1-phase mains
• Multifunctions monitoring relays
• Minimum value supervision with the histeresis mode
• Supply voltage = measuring voltage
|
Meassuring circuit data |
|
|
Functions |
UNDER, WIN |
|
minimum value supervision with the histeresis mode |
|
|
LED indicator |
green LED, yellow LED, red LED |
|
Meassuring circuit |
|
|
• measuring variable |
DC or AC sinus, 48…63 Hz |
|
• terminals, measuring input |
230 V AC; terminals E-F3 |
|
24V AC; terminals E-F2 |
|
|
24V DC; terminals E-F1 |
|
|
• overload capacity |
≥ 1,2 Un |
|
• swiching threshold Us |
max: 0,8< In < 1,2 min: 0,75 < In < 1,15 |
|
Input circuit |
|
|
Supply voltage U |
230 V AC; terminals E-F3 |
|
24V AC; terminals E-F2 |
|
|
24V DC; terminals E-F1 |
|
|
Rated power consumption |
230 V AC: 10,0 VA / 0,6 W 24 V AC: 1,3 VA / 0,8 W 24 V DC: 0,6 W |
|
Rated frequency |
AC: 48...63 Hz |
|
Output circuit |
|
|
Number and type of contacts |
1 C/O - changeover |
|
Rated load AC1 |
5 A / 250 V AC |
|
Max. breaking capacity AC1 |
1 250 VA |
|
Insulation |
|
|
Rated surge voltage |
4 000 V AC |
|
Overvoltage category |
III PN-EN 60664-1 |
|
Insulation pollution degree |
2, if built-in 3 PN-EN 60664-1 |
Products
 |

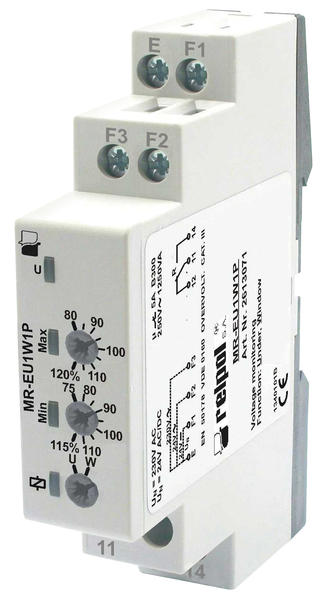

MR-EU1W1P
Monitoring relay, Contacts:1C/O, AC/DC voltage monitoring in 1-phase mains
