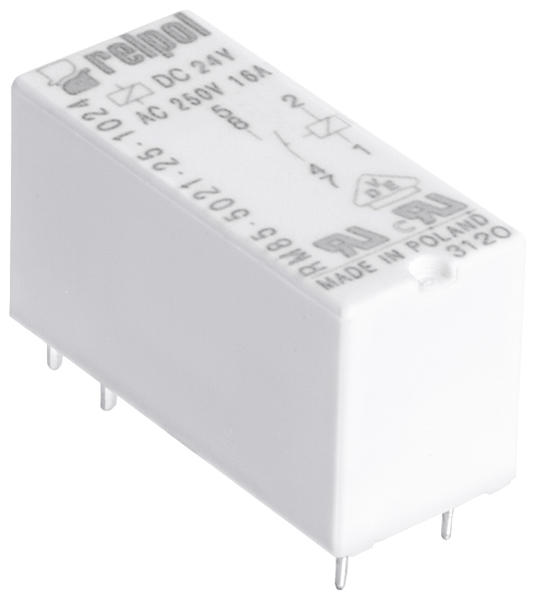

微型PCB功率继电器RM85 inrush    订购编号:

点击这里发送询价

请详细填写一下内容，包括产品原产国、品牌完整名称以及您所能得到的所有信息，这将有助于我们准确迅速的报价。非常感谢！

品牌厂商（Manutacturer）*

公司名称*

产品名称（Product Name）*

联系人*

产品型号（Product Type）*

联系地址*

产品序列号（ID-Nr；Artikel-Nr）

联系电话*

产品描述（Voltage，Amp，Kw,Rpm）

传真*

需求数量（Quantity demanded）

联系邮箱*

附加信息，更具体要求

Przekaźnik RM85
Resistance to inrush current 80 A (20 ms). Contacts: 1NO; rated load AC1 – 16 A/250 V AC; coils DC; for PCB and sockets


Contact data

Number and type of contacts



1 NO

Contact material



AgSnO2

Rated / max. switching voltage

AC

250 V / 440 V

Rated load (capacity)

AC1

16 A / 250 V AC

DC1

16 A / 24 V DC

Rated current



16 A

Max. breaking capacity

AC1

4 000 VA

Coil data

Rated voltage

DC

3 ... 110 V

Rated power consumption

DC

0,4 ... 0,48 W

Insulation

Dielectric strength

between coil and contacts



5 000 V AC

contact clearance



1 000 V AC

General data

Electrical life resistive

AC1

>105  16 A, 250 V AC

Mechanical life (cycles)



>3 x 107

Ambient temperature operating



-40...+85 oC

Sockets

 GZT80, GZM80, GZS80, GZMB80, EC50, PW80, GD50

Accessories for sockets

 Signaling / protecting modules type M

Products

RM85-5021-25-1003

Miniature relay, Contacts: 1 N/O (AgSnO2), Coil: 3VDC, Rated load 16A, pitch 5mm, Inrush (80A)...

RM85-5021-25-1005

Miniature relay, Contacts: 1 N/O (AgSnO2), Coil: 5VDC, Rated load 16A, pitch 5mm, Inrush (80A)...

RM85-5021-25-1006

Miniature relay, Contacts: 1 N/O (AgSnO2), Coil: 6VDC, Rated load 16A, pitch 5mm, Inrush (80A)...

RM85-5021-25-1009

Miniature relay, Contacts: 1 N/O (AgSnO2), Coil: 9VDC, Rated load 16A, pitch 5mm, Inrush (80A)...

RM85-5021-25-1012

Miniature relay, Contacts: 1 N/O (AgSnO2), Coil: 9VDC, Rated load 16A, pitch 5mm, Inrush (80A)...

RM85-5021-25-1024

Miniature relay, Contacts: 1 N/O (AgSnO2), Coil: 24VDC, Rated load 16A, pitch 5mm, Inrush (80A...

RM85-5021-25-1048

Miniature relay, Contacts: 1 N/O (AgSnO2), Coil: 48VDC, Rated load 16A, pitch 5mm, Inrush (80A...

RM85-5021-25-1060

Miniature relay, Contacts: 1 N/O (AgSnO2), Coil: 60VDC, Rated load 16A, pitch 5mm, Inrush (80A...

RM85-5021-25-1110

Miniature relay, Contacts: 1 N/O (AgSnO2), Coil: 110VDC, Rated load 16A, pitch 5mm, Inrush (80...

Sockets

PW80

Spring Clip for GD50, GD35,

EC50

Spring Clip for GD50, GD35,

GD50

Plug-in Socket for RM84, RM85, RM87L, RM87P, BLACK

GZM80

Plug-in Socket for RM84, RM85, RM87L, RM87P, GREY

GZS80

Plug-in Socket for RM84, RM85, RM87L, RM87P

GZT80

Plug-in Socket for RM84, RM85, RM87L, RM87P, BLACK

Clips

GZT80-0040

PCB Plug-in Socket for RM84, RM85, RM87L, RM87P, RM83 , GREY

MH16-2

Plug-in Socket Retractor Clip for GZM80, GZT80, GZM92, GZT92, GREY, BLACK,

Accessories

GZT80-0035

PCB Plug-in Socket for RM84, RM85, RM87L, RM87P, RM83, BLACK

ZGGZ80-1

Interconnection srips 8-pools for sockets GZT80, GZM80, GZT92, GZM92, GZ96, GZS80,GZS92

ZGGZ80-2

Interconnection srips 8-pools for sockets GZT80, GZM80, GZT92, GZM92, GZ96, GZS80,GZS93
